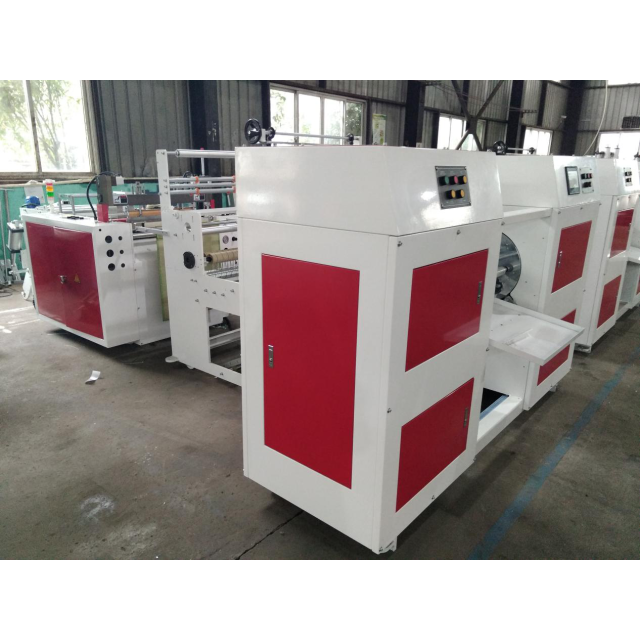

The HSWX-700 is a machine with two options. When the temperature controller is turned on, the machine will roll the bottom seal bag into a coreless co-roll bag, and if the temperature is turned off, the machine will make a plastic table cloth by punching holes in the work table cover.
Table cloth making steps: First expand the film, then seal it and punch it, and finally roll it. The machine can seal up to 2 or 4 or 8 layers of film. The bag width is 600mm. Less than 600mm, bag rolls can be produced. It can produce most products according to market demand. Sea rise, making bags easier.
餐桌罩制作机
HSWX-700是一台具有两个选项的机器。 当温度控制器打开时，机器将使底部密封袋卷成无芯连卷袋，如果温度关闭，机器将使工作台盖上打孔制作塑料餐桌布。
餐桌布制作步骤：首先将薄膜展开，然后将其封口并打孔，最后再收卷。机器最多可封膜2层或4层或8层。 袋子宽度是600mm。 小于600mm，袋卷均可生产。 它可以根据市场需求生产大多数产品。海升，使制袋更加简单。
|
型号 |
|
|
生产过程 |
送料,然后热封并切割，最后收卷 |
|
生产道数 |
1 Line |
|
最大放卷宽度 |
600 mm |
|
最大收卷袋宽度 |
400 mm |
|
最大袋宽 |
600 mm |
|
袋长 |
300-1500 mm |
|
膜厚 |
7-35 micron per layer |
|
生产速度 |
80-100m/min |
|
收卷直径 |
120mm (Max.) |
|
总功率 |
10KW |
|
空压机 |
5HP |
|
机器重量 |
2200KG |
|
机器尺寸 |
L6500*W1800*H1700mm |
table cover making machineparts view
