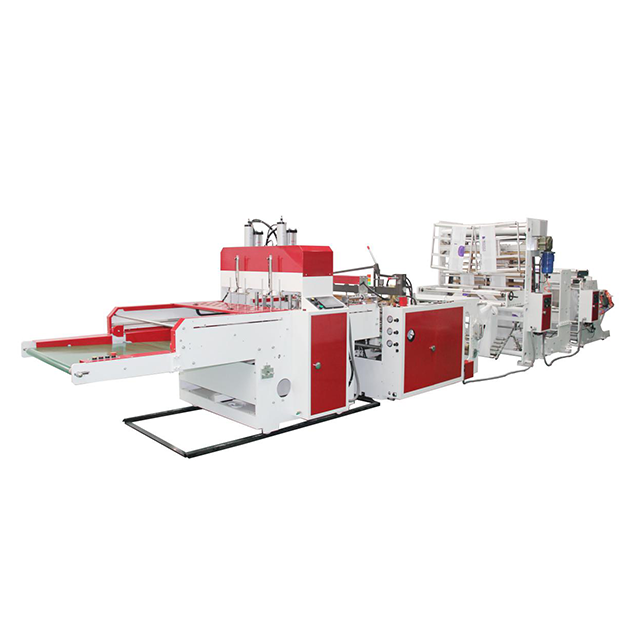

The HSCB-1100 is a high-speed bag-making machine that cuts and reseals large rolls into two small rolls.
This machine is controlled by 2 independent computers, driven by a 5.5KW servo motor, and is suitable for the production of disposable plastic T-shirt bags.
Roll first, then cut and seal, heat seal and heat cut, and finally punch.
Haisheng plant can manufacture two-wire and four-wire vest bag side machines. Production speeds of 100-230 per minute are suitable for most market order requirements.
手提袋制造机
HSCB-1100是一台将大卷切割再密封成两个小卷的高速制袋机。
本机由2台独立计算机控制设计，由5.5KW伺服电机驱动，同时适用于生产一次性塑料T恤袋。
首先放卷，然后切割和密封，热封和热切割，最后打孔。
海升工厂可以制造双线和四线背心袋插边机器。生产速度每分钟100-230个，适合大多数市场订单要求。
|
型号 |
HSCB-1100 |
|
袋宽 |
200mm-380 mm |
|
袋长 |
330mm - 650 mm |
|
膜卷宽度 |
1000mm (Max) |
|
膜厚 |
10-35µm per layer |
|
生产速度 |
100-230pcs/min X2 Lines |
|
线速度 |
80-120m/min |
|
筒料直径 |
Φ800mm |
|
总功率 |
16KW |
|
空压机 |
5HP |
|
机器重量 |
3800KG |
|
机器尺寸 |
L11500*W1700*H2100mm |
carry bag maker parts view
